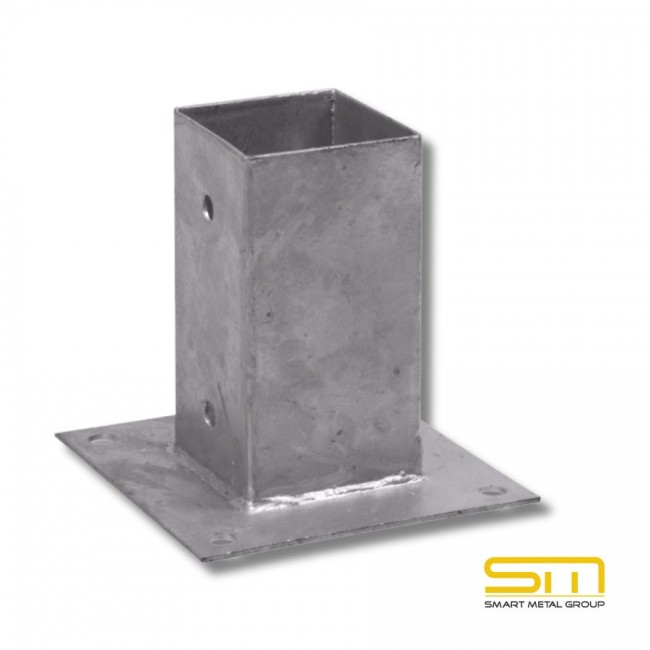

Beam Bracket AH, tZn

Beam brackets AH are designed for secure mounting of wooden beams to concrete or other solid bases. Made of high-quality S235 steel with hot-dip galvanized coating (HDG) according to DIN EN 1461, they ensure excellent corrosion resistance and long service life in both indoor and outdoor applications.

Advantages:

Ideal for supporting structures: pergolas, terraces, canopies, etc.
Strong and stable anchoring.
Ready-made holes for screws or anchors.
Available in various sizes for different beam types.

Art. No	Standard	Coating	Materia l	Width	Height	Thickness	Size (mm)	Weight (kg)
PL AH 71	DIN EN 1461	HDG	S235	71 mm	150 mm	2 mm	71 × 71 × 150 × 2	0.980
PL AH 91	DIN EN 1461	HDG	S235	91 mm	150 mm	2 mm	91 × 91 × 150 × 2	1.133
PL AH 101	DIN EN 1461	HDG	S235	101 mm	150 mm	2 mm	101 × 101 × 150 × 2	1.287
PL AH 121	DIN EN 1461	HDG	S235	121 mm	150 mm	2 mm
