Hydraulic machine for cutting rebar 26 mm

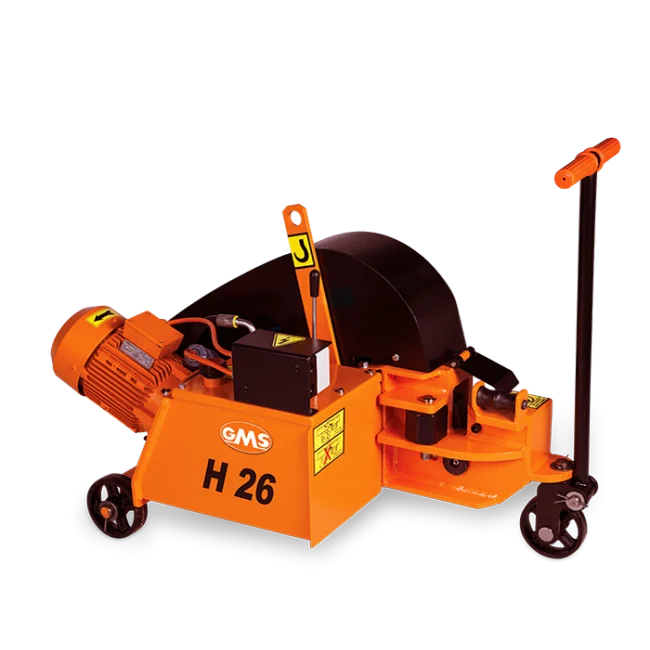

Hydraulic rebar cutting machine H 26

They are hydraulic system and spring return machines.

In addition to easy transport over short distances thanks to their wheels, they are suitable models for construction sites thanks to their durable constructions against harsh conditions such as dust and heavy work. They consume low power, can perform cutting operations at low pressure, they are silent, safe and environmentally friendly.

The type of management is convenient; require less maintenance and have a long product life. Compared to machines with the same capacity but different systems, they are very economical. Since the hydraulic oil reservoirs of the H series machines are threaded and disassembled, their reassembly is very easy (during parts replacement and refurbishment).

• Strength of steel 45 kg/mm2 - 1 pc. Ø 26 mm, 2 pcs. - Ø 16 mm

• Strength of steel 65 kg/mm2 - 1 pc. Ø 22 mm, 2 pcs. - Ø 12 mm

• Strength of steel 85 kg/mm2 - 1 pc. Ø 18 mm, 2 pcs. - Ø 10 mm

Specifications:

• Voltage 380 V

• Engine power - 2.2 kW

• Frequency - 50 Hz

• Hydraulic oil tank capacity - 17 liters
